The Brakes - Harm Balance

Richard Lehr  15 May 2014 17:55:22

Parts needed to repair the Brakes

4 left and right helical spring (brake shoe return)
4 show pin guide
2 extension spring
1 tube assembly
6 hydraulic brake cylinders (for all six wheels)
6 key washer
2 adjustment screw

and new brake linings for all six wheels.
Comments Disabled

The Brakes - Front Right - 2nd Continuation

Richard Lehr  14 May 2014 22:18:00

The problem with the brakes - Act Eight

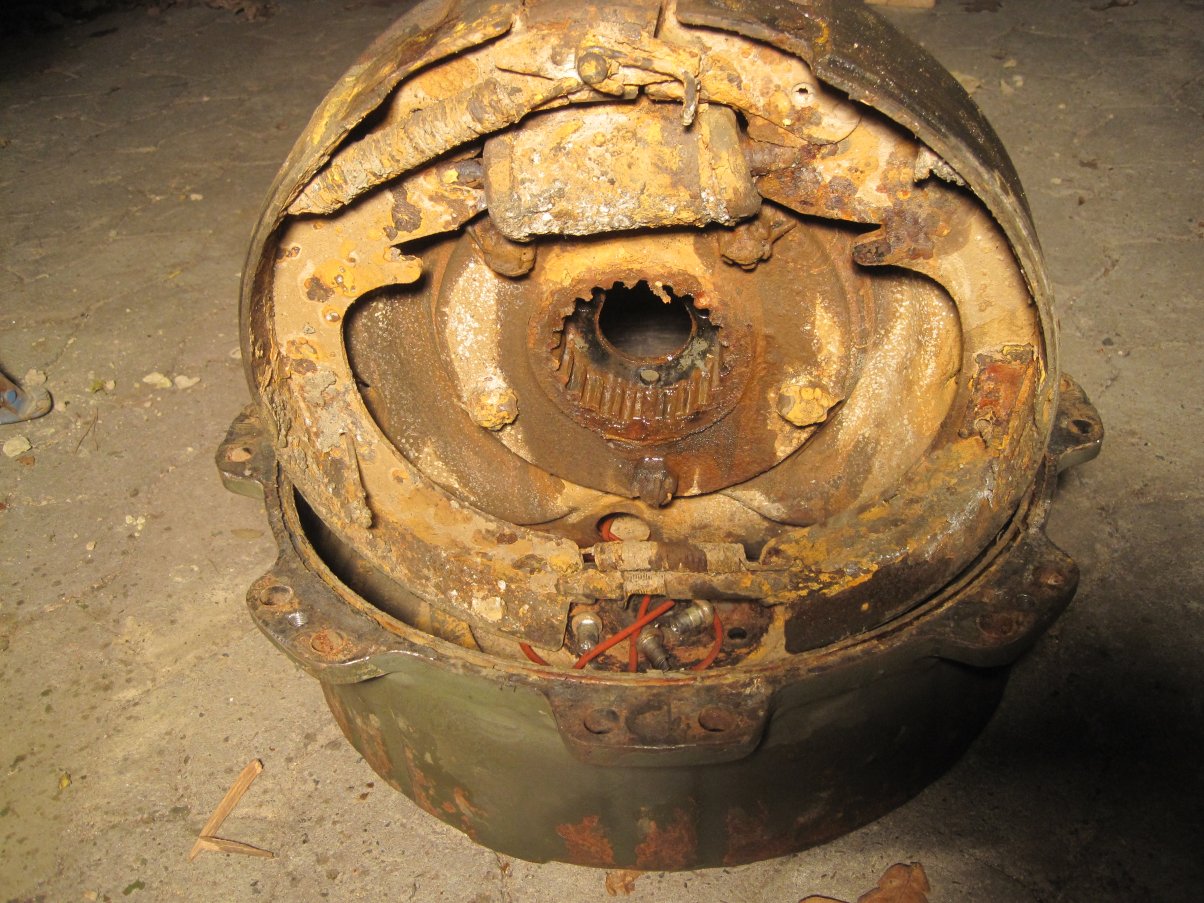

Last but not least the inside of the brake on the front right side. Without words.




Comments Disabled

The Brakes - Front Left - Continuation

Richard Lehr  14 May 2014 20:39:00

The problem with the brakes - Act Seven

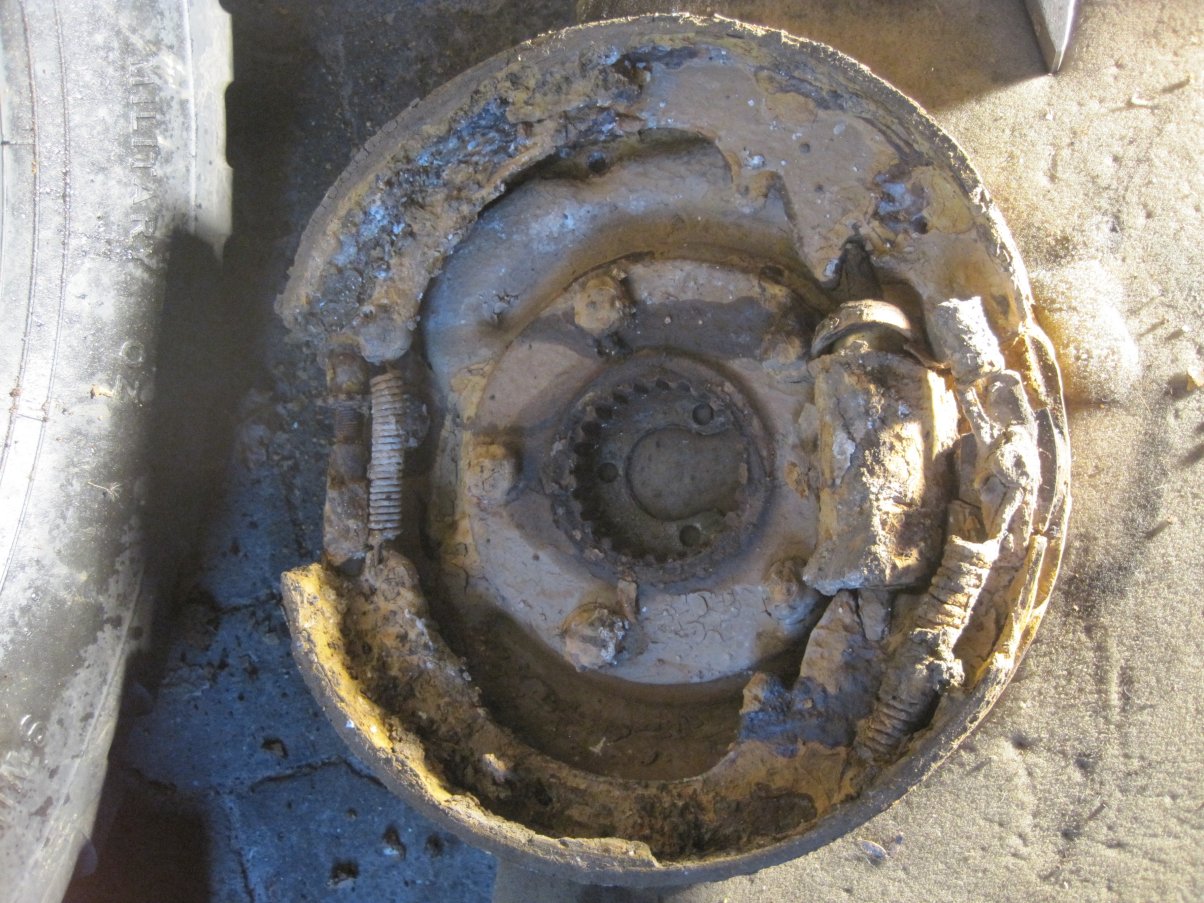

The inside of the drum is like a dry lake.



 A return spring is broken.





Comments Disabled

The Brakes - Left Middle - Continuation

Richard Lehr  14 May 2014 19:22:00

The problem with the brakes - Act Six

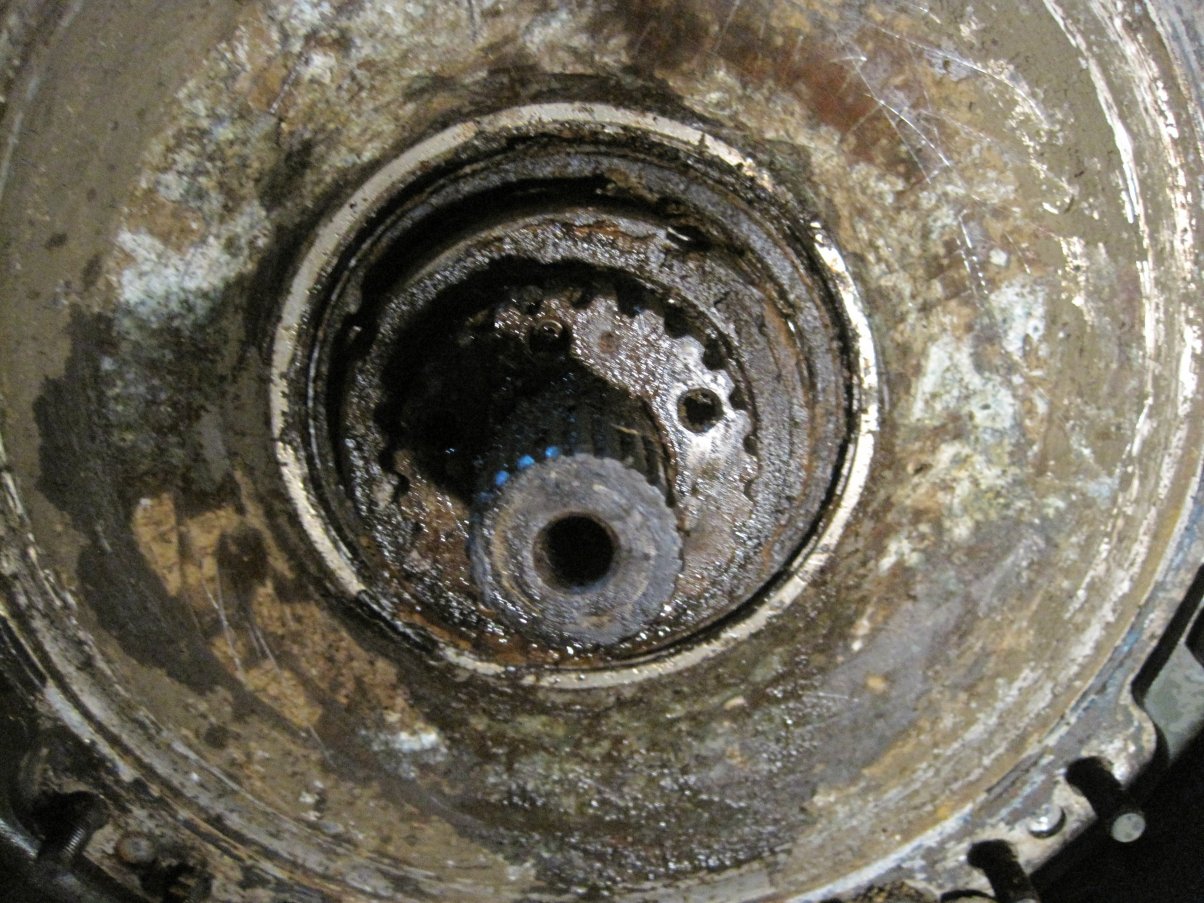

The inside of the "oil pan" is like new ...









Comments Disabled

The Brakes - Front Right - Continuation

Richard Lehr  3 May 2014 19:26:00

The problem with the brakes - Act Five

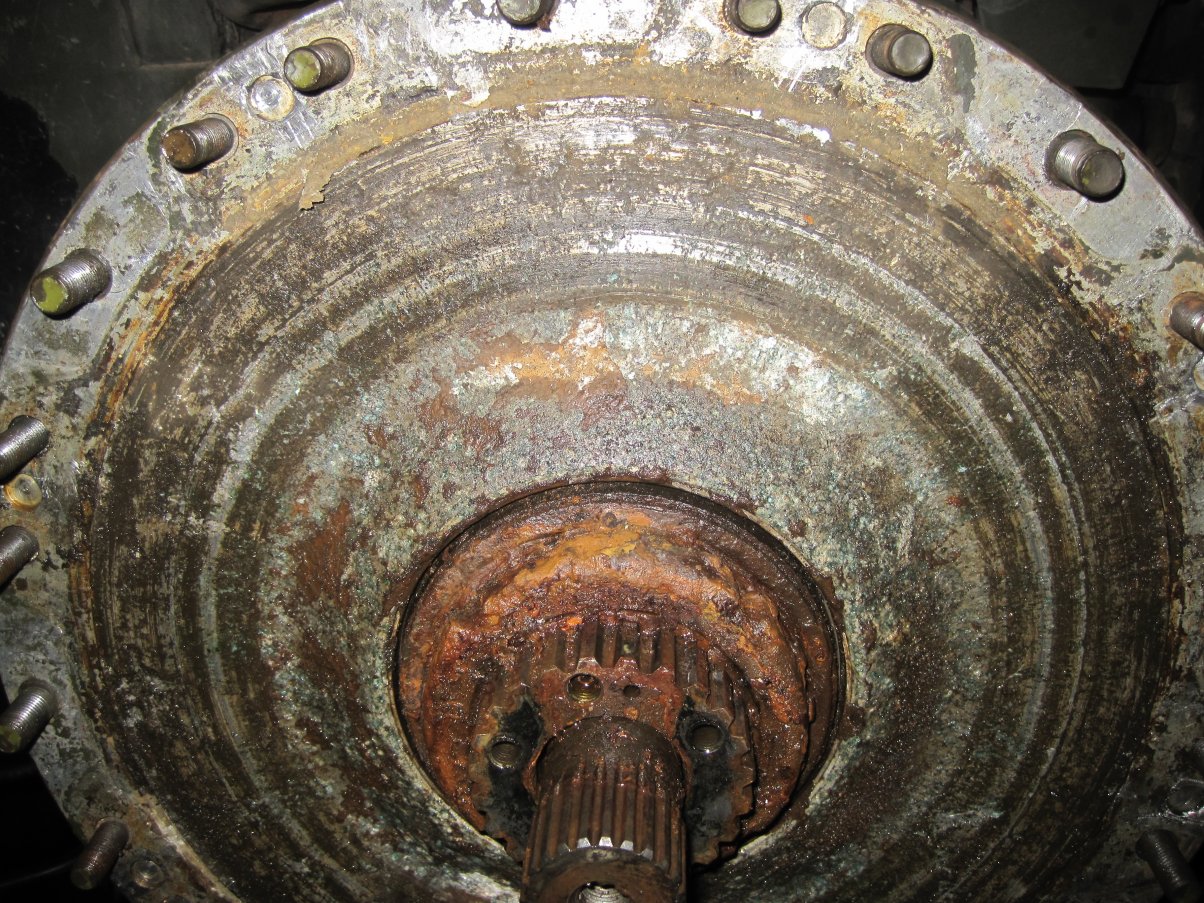

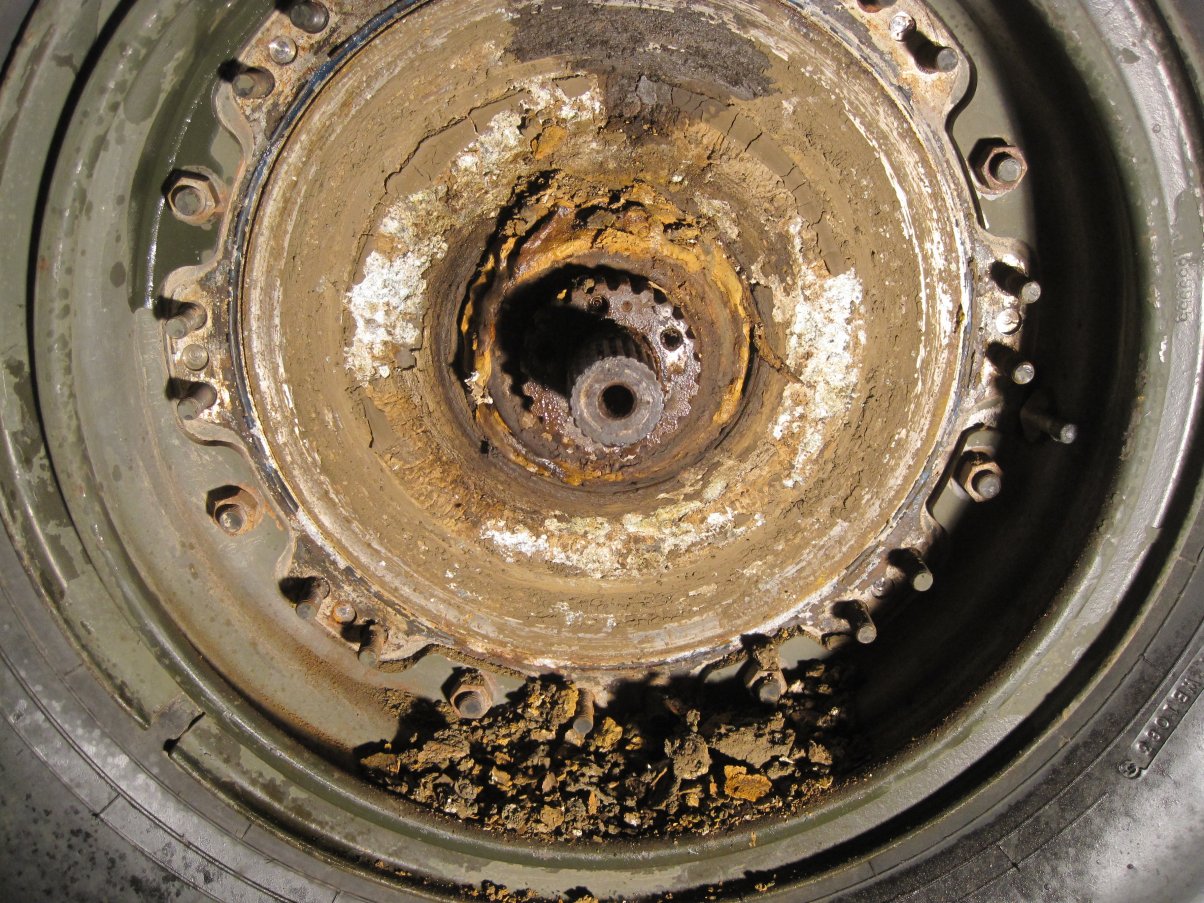

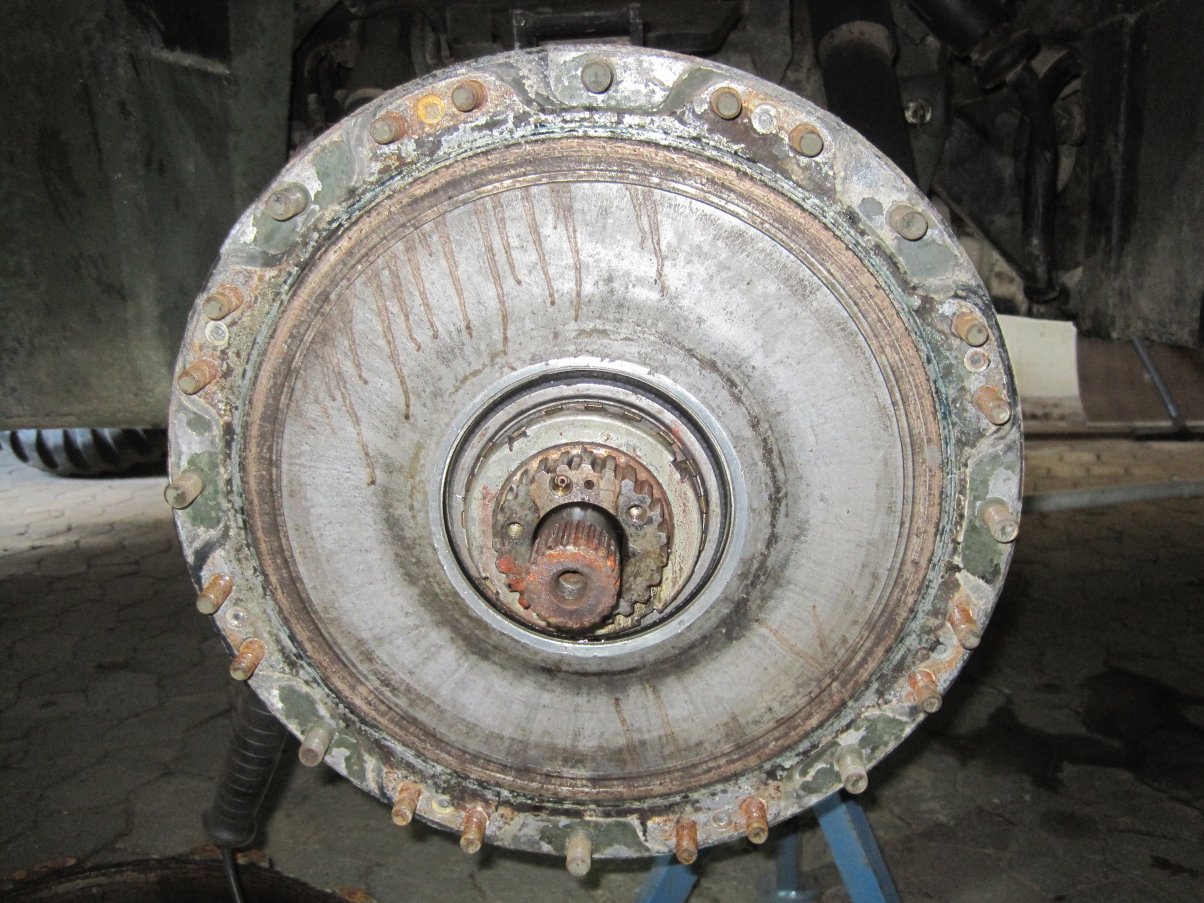

After having no luck in getting off the brake drum from the wheel hub, we decided to cut the six rivets. And we had luck, the brake drum went off. But no chance to get off the brake drum assembly hub from the shaft ...





Until using the strongest tool in the shop ...
