Street legal Goat

Richard Lehr  11 July 2016 20:46:00

The Goat, loaded on an Assistance tow truck for a little journey to go thru the TÜV and get the §§21,23 certificates which are necessary to get her street legal and declared as a historical vehicel.


Comments Disabled

The Cause

Richard Lehr  31 August 2015 20:51:00

Item #2 in the figure, the seal, was causing the problem ...










Comments Disabled

Happiness and Sadness

Richard Lehr  6 June 2015 19:20:00

Since everything was working well on the brakes. I made my first offroad test drive.

I do not know why I checked the inside of the drums. But it was a good idea. From where is this mud and dirt coming?










Comments Disabled

Assembling the Brake

Richard Lehr  4 October 2014 13:16:00

Puting all together ...




Comments Disabled

Brake Drums

Richard Lehr  28 September 2014 13:58:00

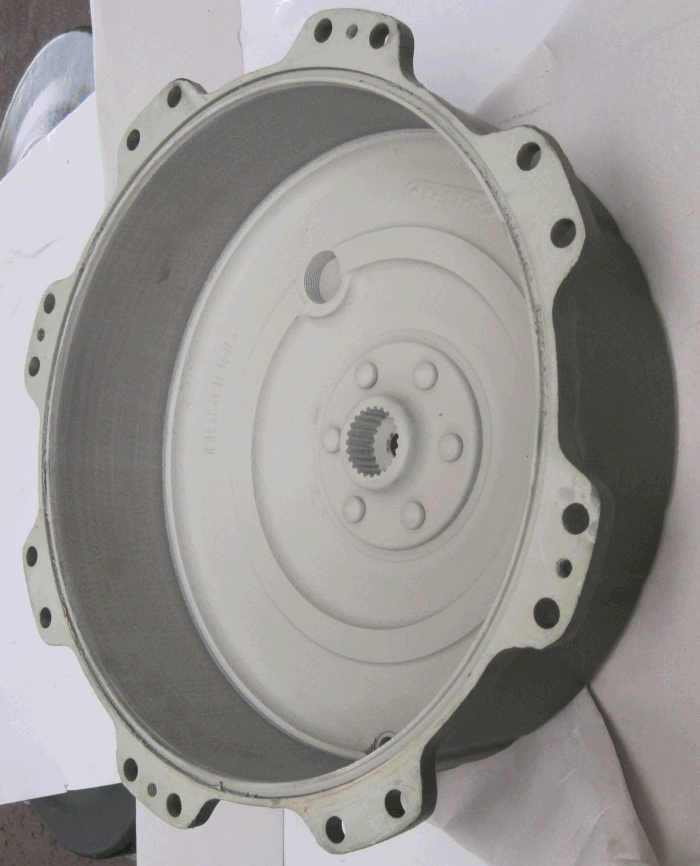

The six painted brake drums come back from the turning shop.


Comments Disabled

Mirrors are back

Richard Lehr  28 September 2014 13:58:00

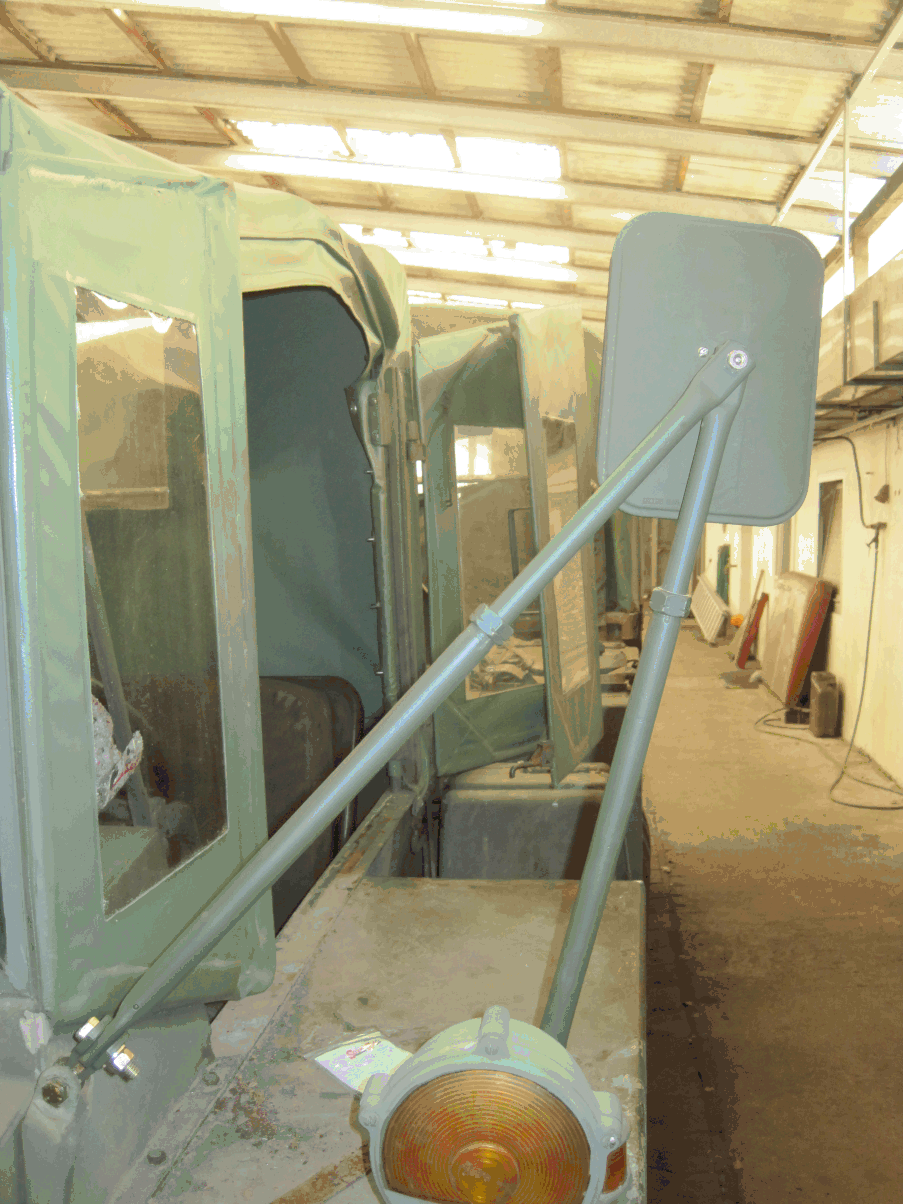

Mounted the NOS mirrors ....


Comments Disabled

Nuts, bolts and washers

Richard Lehr  28 September 2014 12:30:00

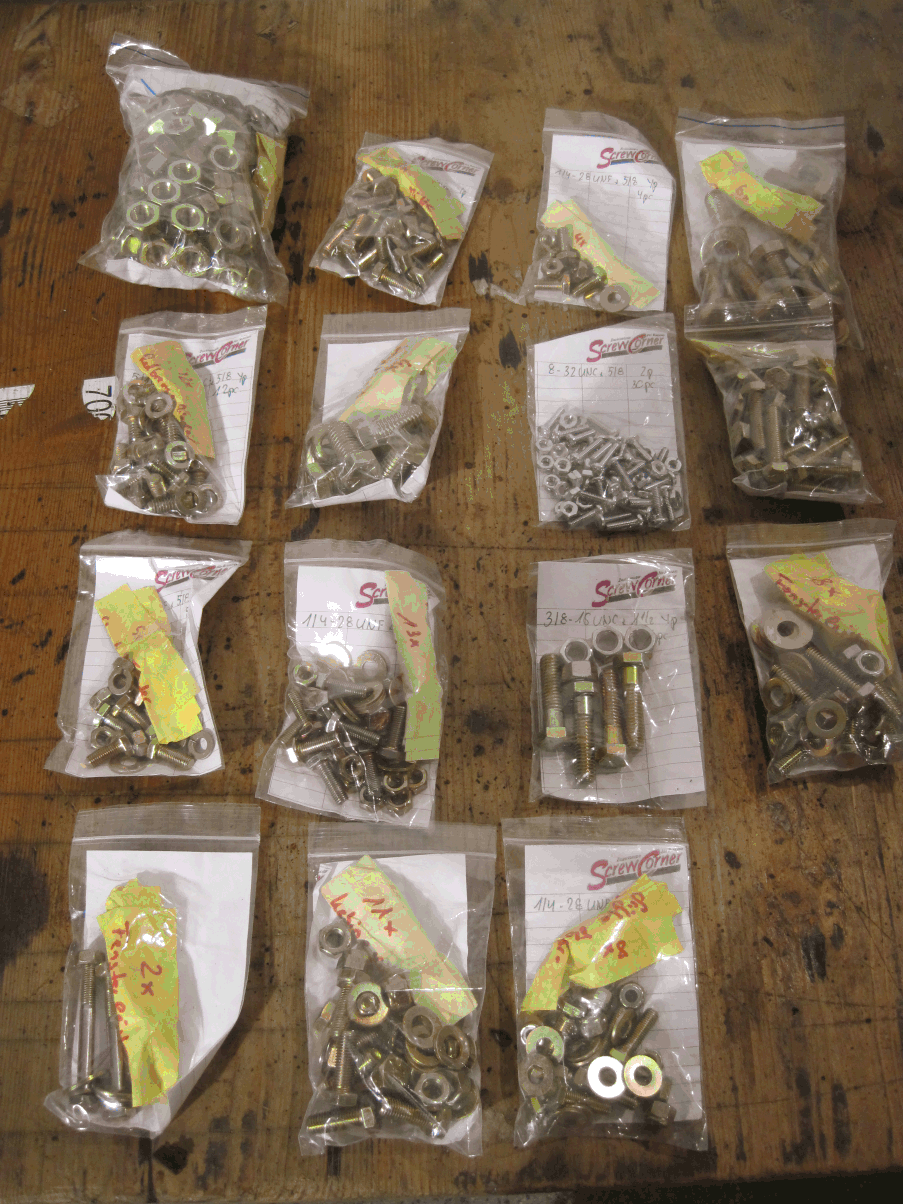

To assemble everything, new nuts and bolts (UNC & UNF) and washers were necessary. Found everything at http://www.screwcorner.com/


Comments Disabled

Seat Console

Richard Lehr  16 September 2014 17:08:00

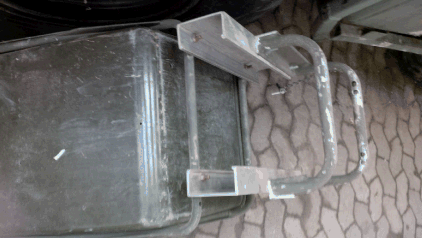

Nice construction, but not original. The original part was cut and between the original console and the seat there where U profiles used. The original console does not fit any longer.

After some investigation I found a correct NOS console for the passenger side which is fix while the driver side is adjustable.





Comments Disabled

Paint job done

Richard Lehr  15 September 2014 19:28:00

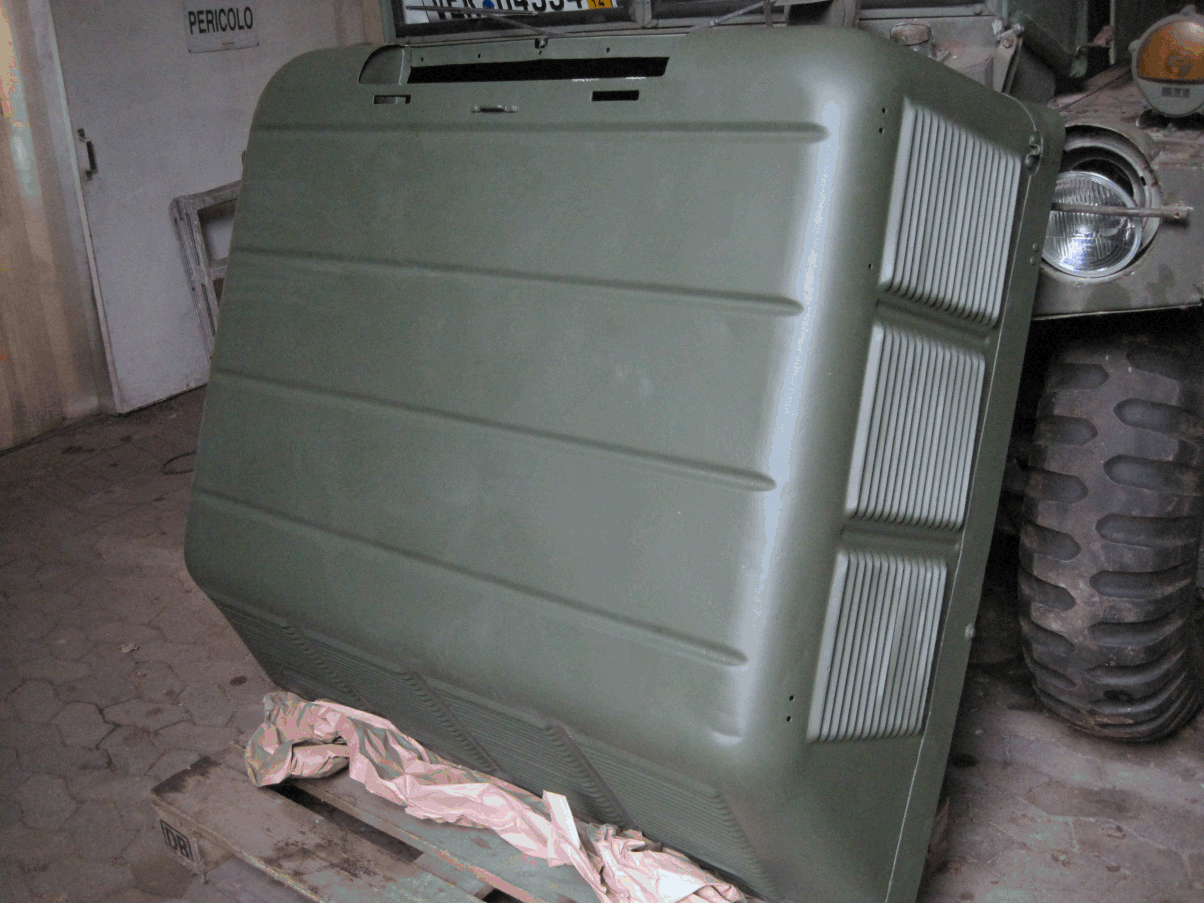

Got back from the paint shop the engine hood, brake drums, tail gate and the other steel parts. Good job, MERDC green.






Comments Disabled

Tail Gate

Richard Lehr  22 August 2014 19:00:00

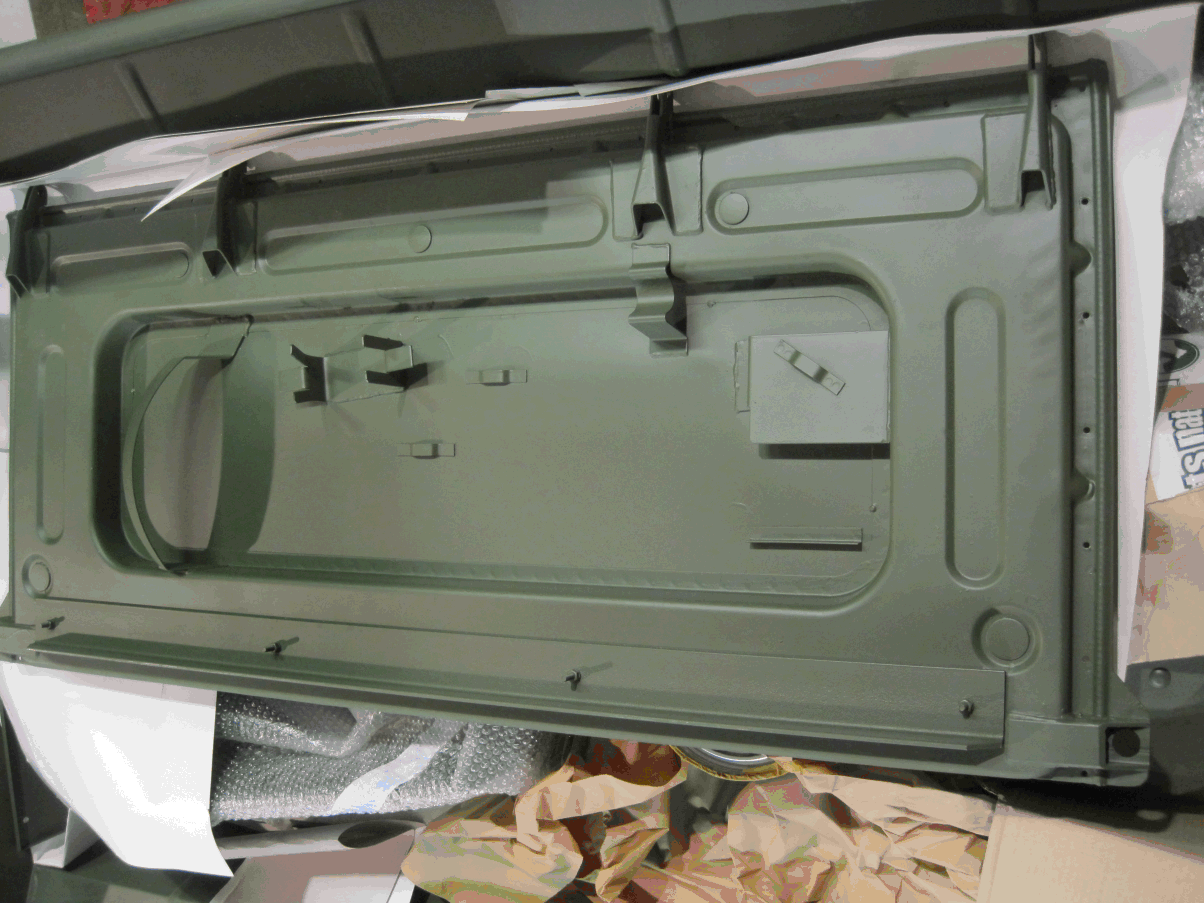

While my Goat came with a dented and rusted tail gate, I found a NOS one with a rubber seal in excellent condition for a reasonable price in the USA.






Comments Disabled

Pioneer Tool Kit

Richard Lehr  22 August 2014 18:52:00

What is a NOS tail gate missing? Yes, the pioneer tool kit. Ax and pickaxe are now together with the shovel. As new as the tail gate. And I also found the belt and two guards for the head light.


Comments Disabled

Seat Cushions

Richard Lehr  22 August 2014 18:51:00

Hard to find, but I got them. A complete NOS set of seat cushions.


Comments Disabled

Battery Box

Richard Lehr  22 August 2014 18:48:00

Found two NOS battery boxes.




Comments Disabled

Rear Mirrors

Richard Lehr  22 August 2014 18:38:00

Received two NOS rear mirrors.


Comments Disabled

Brake Lines

Richard Lehr  22 August 2014 18:35:00

Because of the trouble with the rust and dirt, I was happy to find some NOS brake line which are located in the brake drum and fitted to the wheel brake cylinder.


Comments Disabled

Jerry Can and Battery Box Straps

Richard Lehr  18 August 2014 21:09:00

The canvas straps are not even in best condition. Also one was exchanged by something else with different canvas material.

Starting the search ...




Comments Disabled

Wheel stud modified

Richard Lehr  14 August 2014 15:10:00

In a turning shop the wheel bolt was modified so that it can no longer rotate when the nut is tightened.


Comments Disabled

Brake Shoes

Richard Lehr  5 August 2014 14:48:00

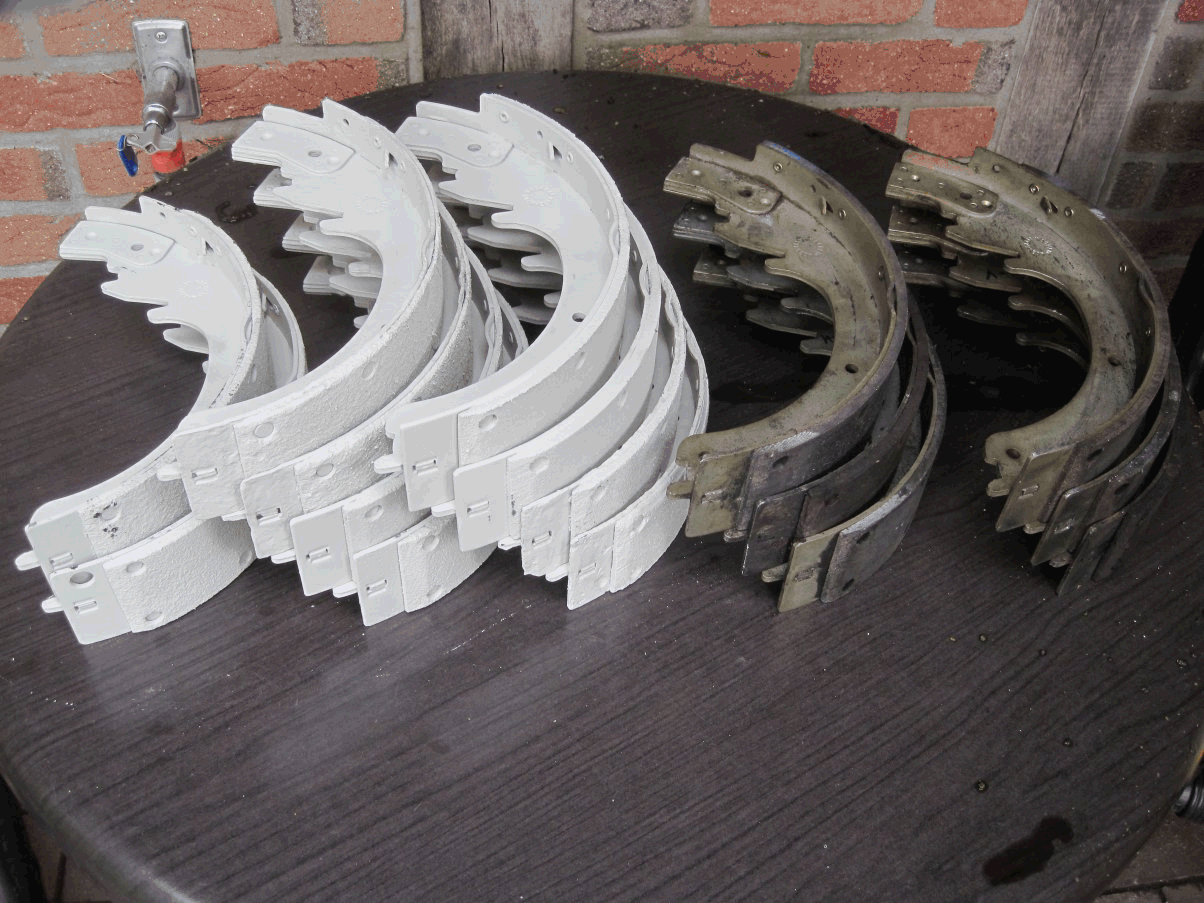

Received "like new" brake shows today. The new brake pad on the original shoes are glued not riveted. Does not matter, the main thing is the Goat brakes.




Comments Disabled

Bolt Feaver

Richard Lehr  30 July 2014 20:27:00

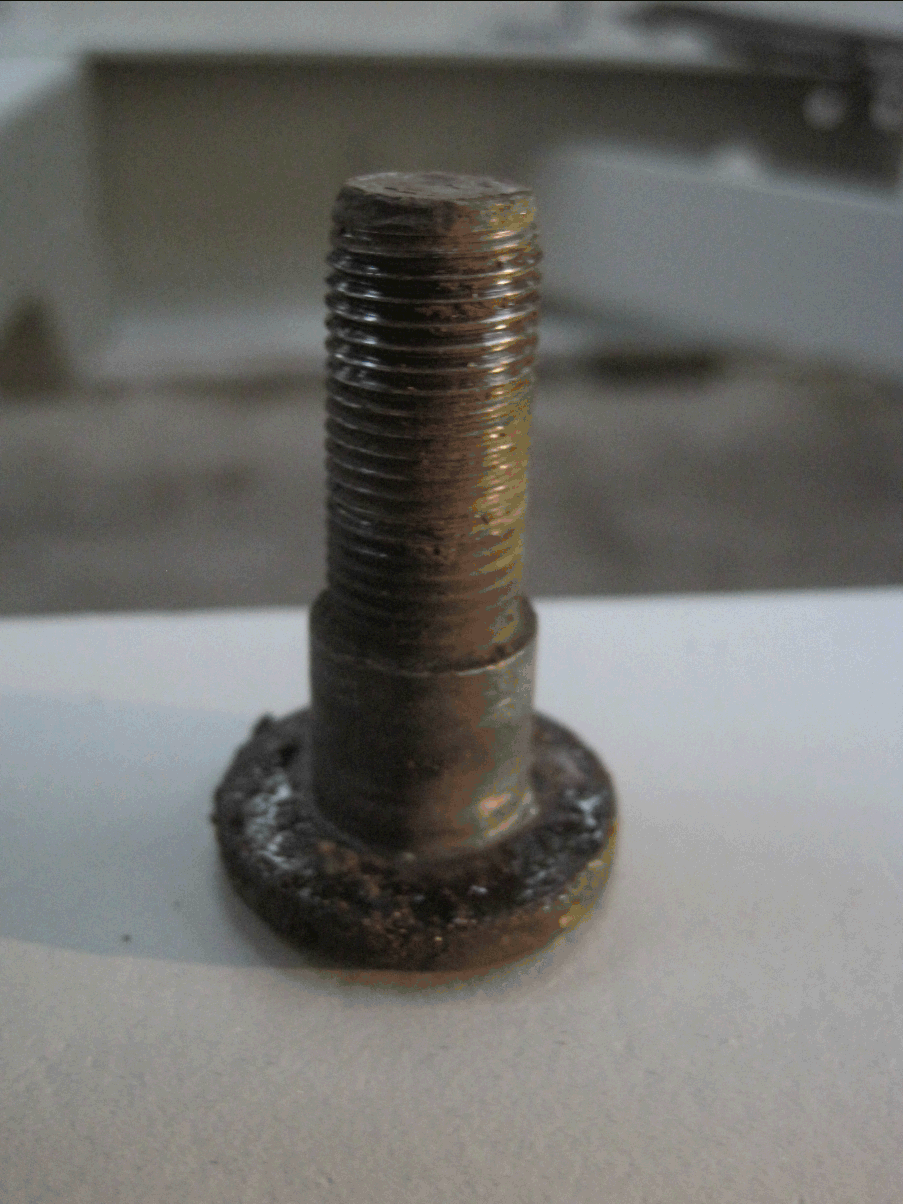

Trying to fasten the wheel nut ended in a rotating bolt.


Comments Disabled

Sandblasting

Richard Lehr  13 July 2014 15:30:00

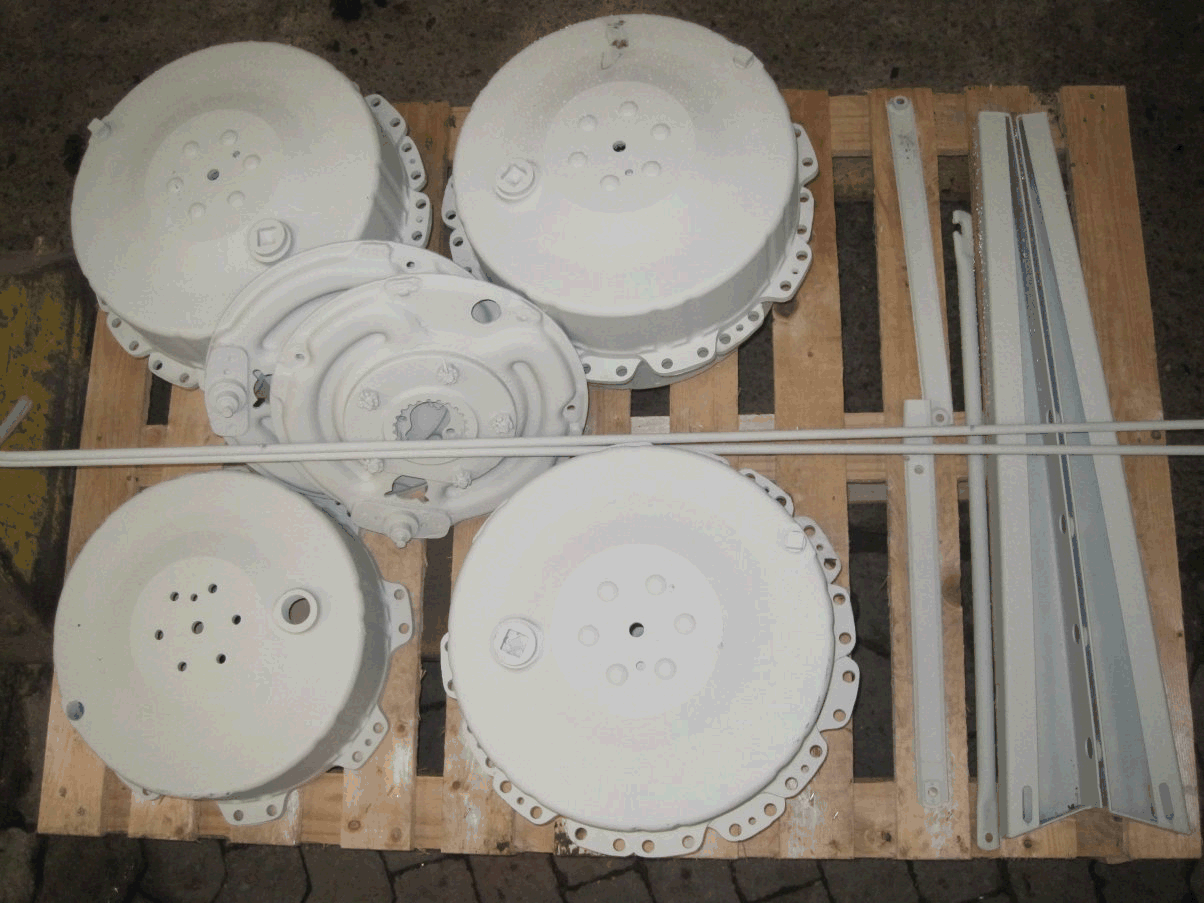

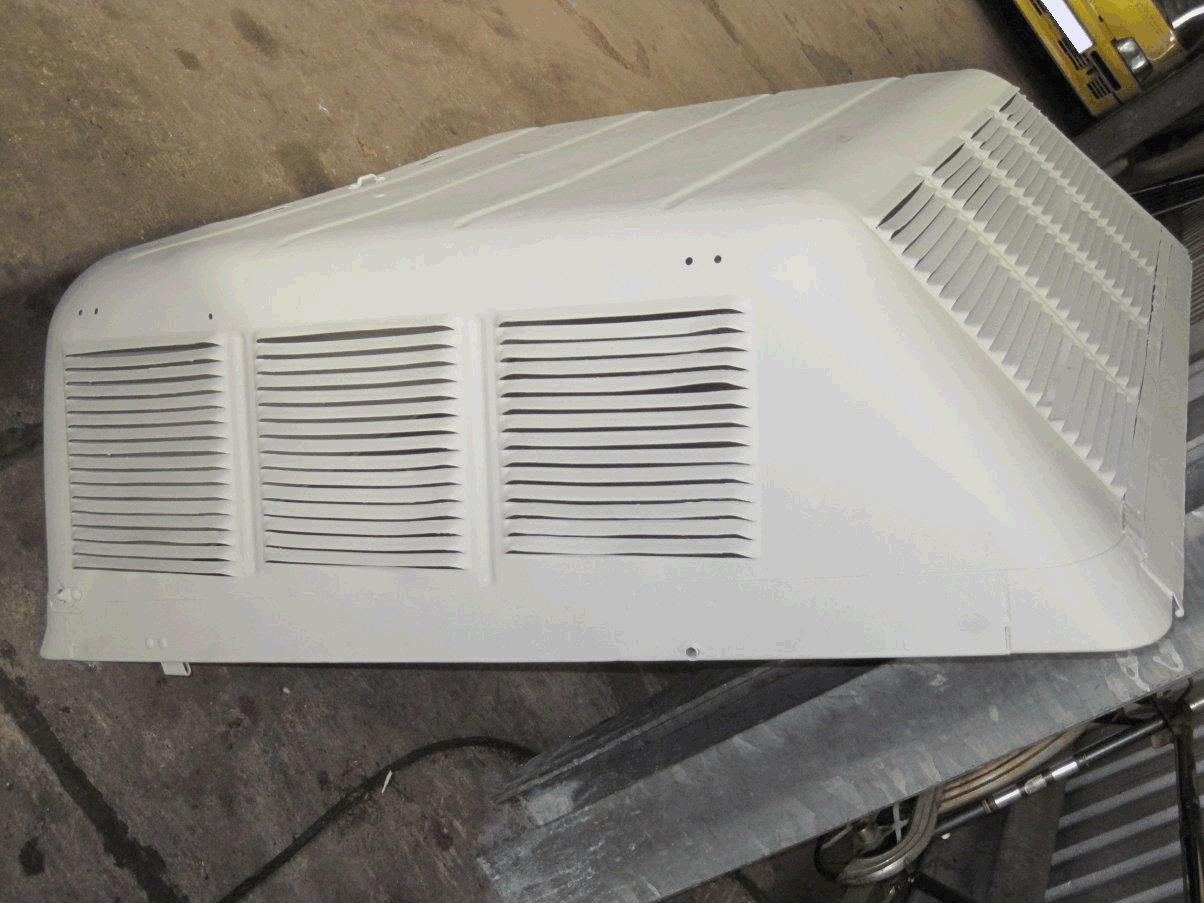

While the Goat has some parts made of steel, a decision to preserve these parts had to me made. So the engine hood, the mirror arms, brake shoes and the brake drums came home from sandblasting today. Ready for the paint job ...








Comments Disabled

First review

Richard Lehr  18 April 2014 14:53:58

What is Original ?

The Gama Goat was private owned in first hand since 1996. Nevertheless there are some parts which are not even original. Looking for a replacement ...

The rear mirrors are Made in England.
Also the wipers and blades.

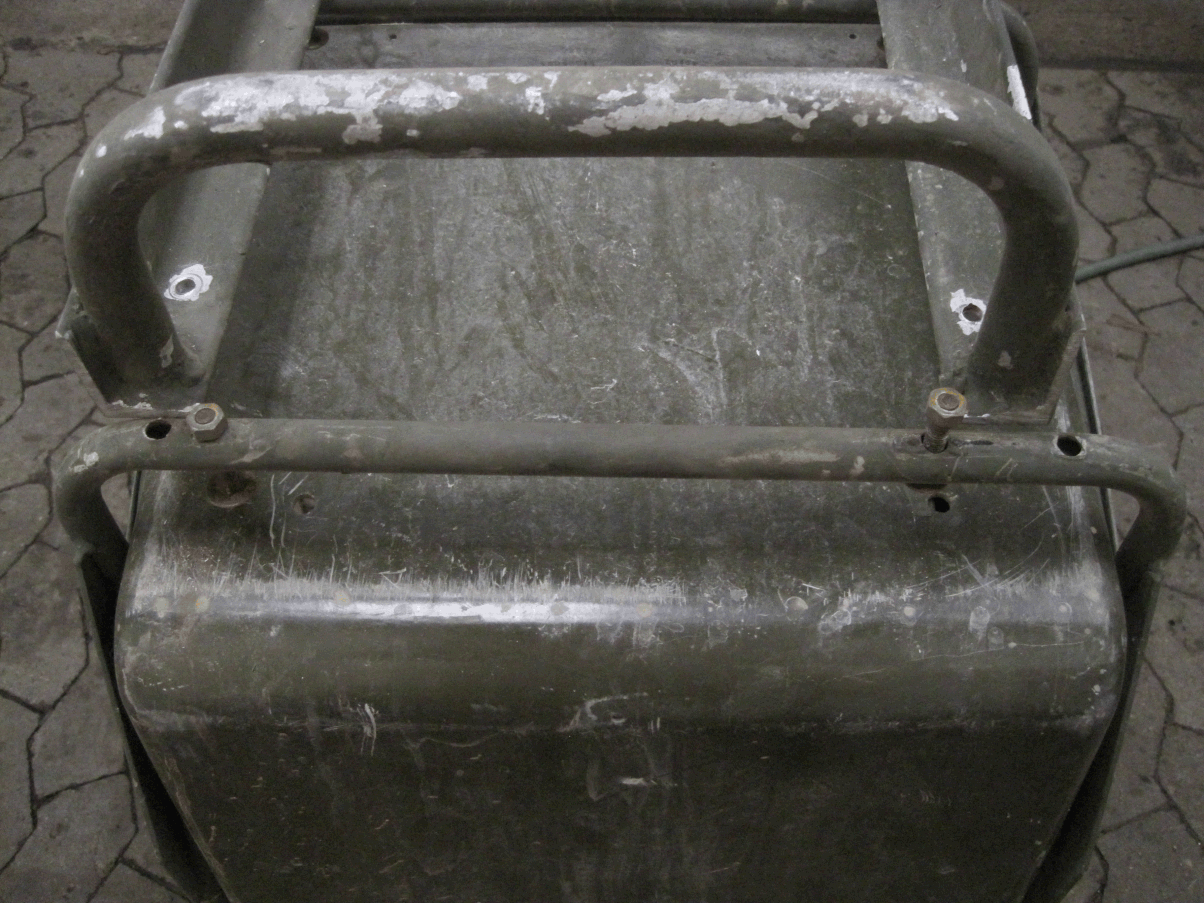

The top and doors of the tractor are (well made) after market. Same for the carrier.
The front bumber and the shackles are not original, too.

Last but not least a riddle. Was the exhaust system modified? See the unused bracket and empty hole on top of the picture which is used for the exhaust tail pipe. Here the exhaust points to the wheel and shock right now. There were no A1 or A2 series ever for the Gama Goat, but the M561 has differences like
- the exhaust system (funny that the bracket and the whole already exists (see picture below)
- the engine hood (either steel or aluminium)
- the lights on the front fender, either the newer M-series style or the older version
